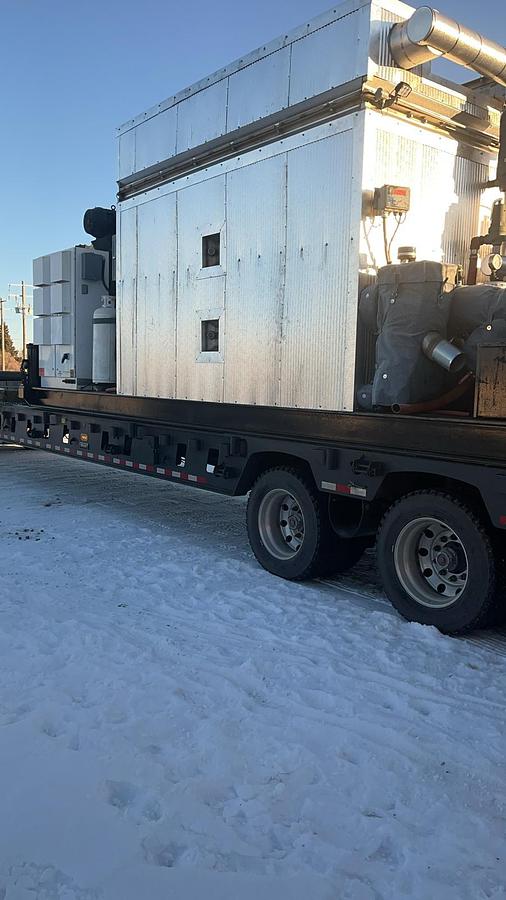

2024 Dynamic Industrial Solutions T-54 55MMBTU Frac/Water Heater

55 Million BTU Direct-Contact Skid-Mounted Frac Heater

31’ x 8’ Engineered skid (weight approximately 38,000 lbs)

55 million BTU input propane

Approved valve train propane with a natural gas option

Spray nozzle/316 SS water bath unit

Gencore Industries ultra burner c/w 2 blowers 40 HP and 10 HP fan, ignitor system

Burner chamber 316 stainless seel

4” discharge 6” inlet manifold system off of rear of skid C/W blow down air lines

Electrical component (480V 3 phase)

Propane supply pump

Work lights mounted around unit for night time operation

Safety emergency flow switches

Nitrogen emergency shutdown system (N2 bottle not included)

Electronic temperature burner control system constant burner control monitoring system electronic Temperature controller on both input and output

High temperature shut down on burner system

Stack mentoring system

SP6 commercial blast on all steel components

Self priming pump

LPG pluming/optional NG pluming

(2) 6 x 5 Mission Mag 1 pump (olympia double mechanical seals)

100 lb.Pilot ignition propane tank

4· flowmeter (cast aluminum)

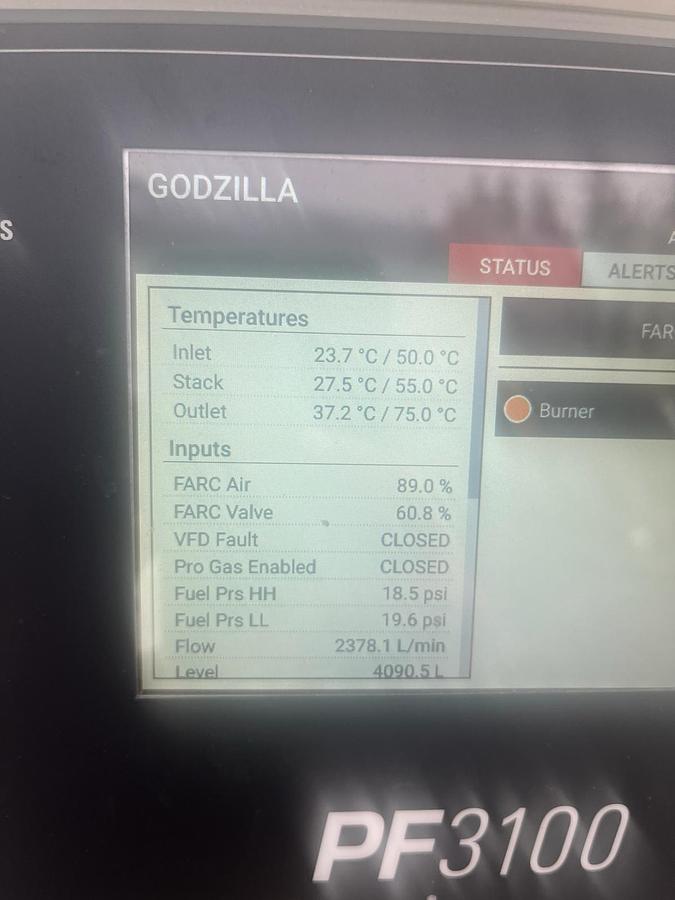

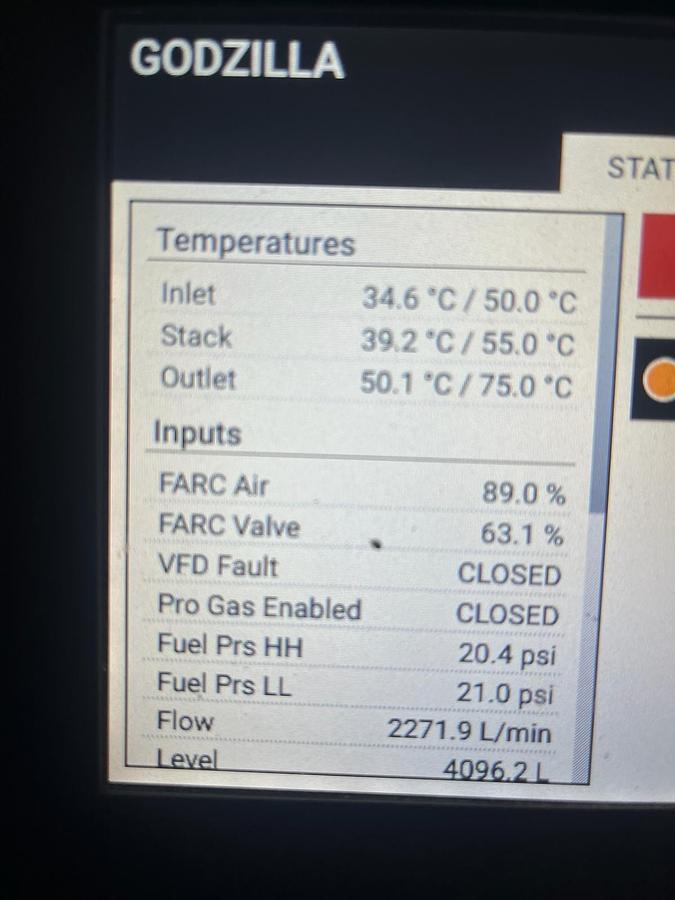

CSA certified control panel (PF 3100 interface BMS module)

UV integrated flame scanner x 2

Type K temperature control modules

Stainless steel packing material

LEL gas detection system

Hydraulic leg lift package for loading/off-loading skid unit

SCADA (remote monitoring)

Package/system (optional item) - allows for tracking, data reports, remote monitoring, and control of the unit
