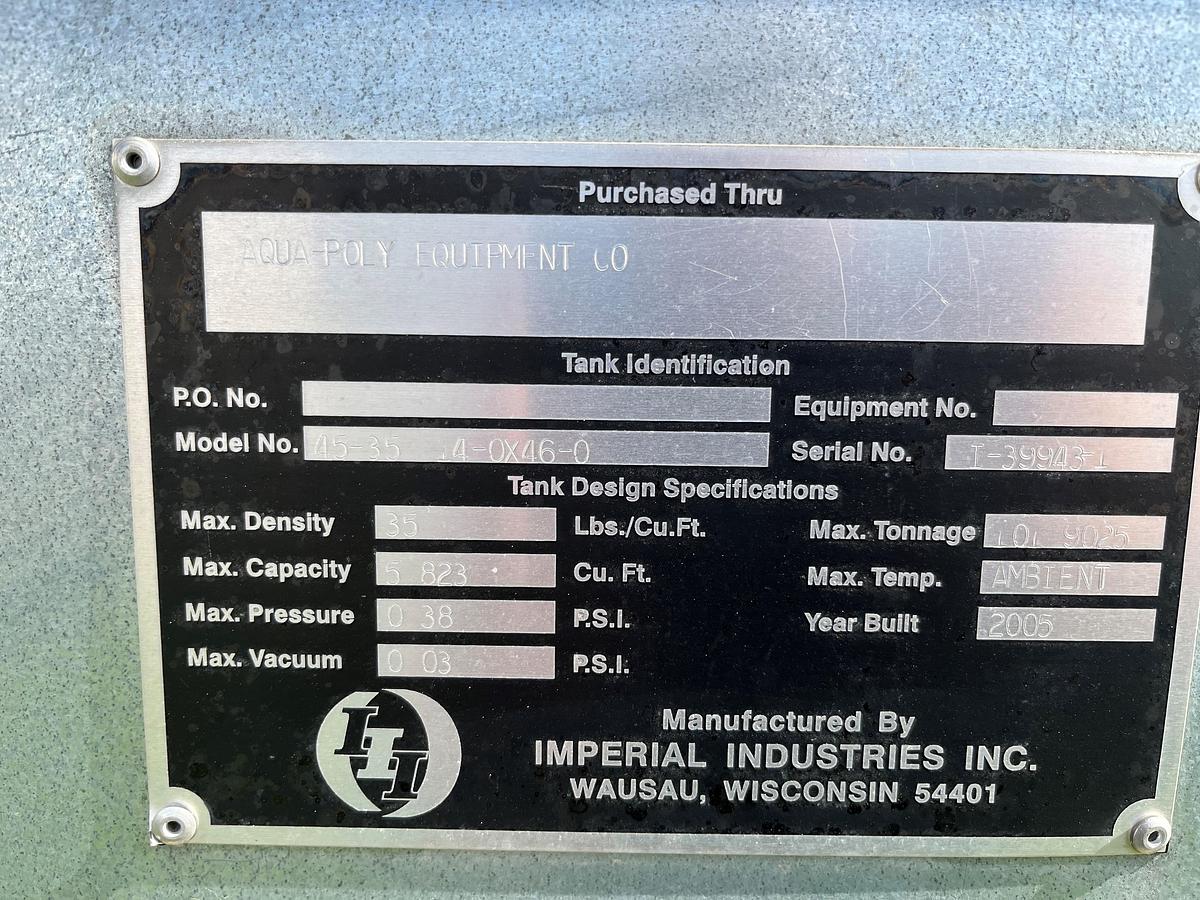

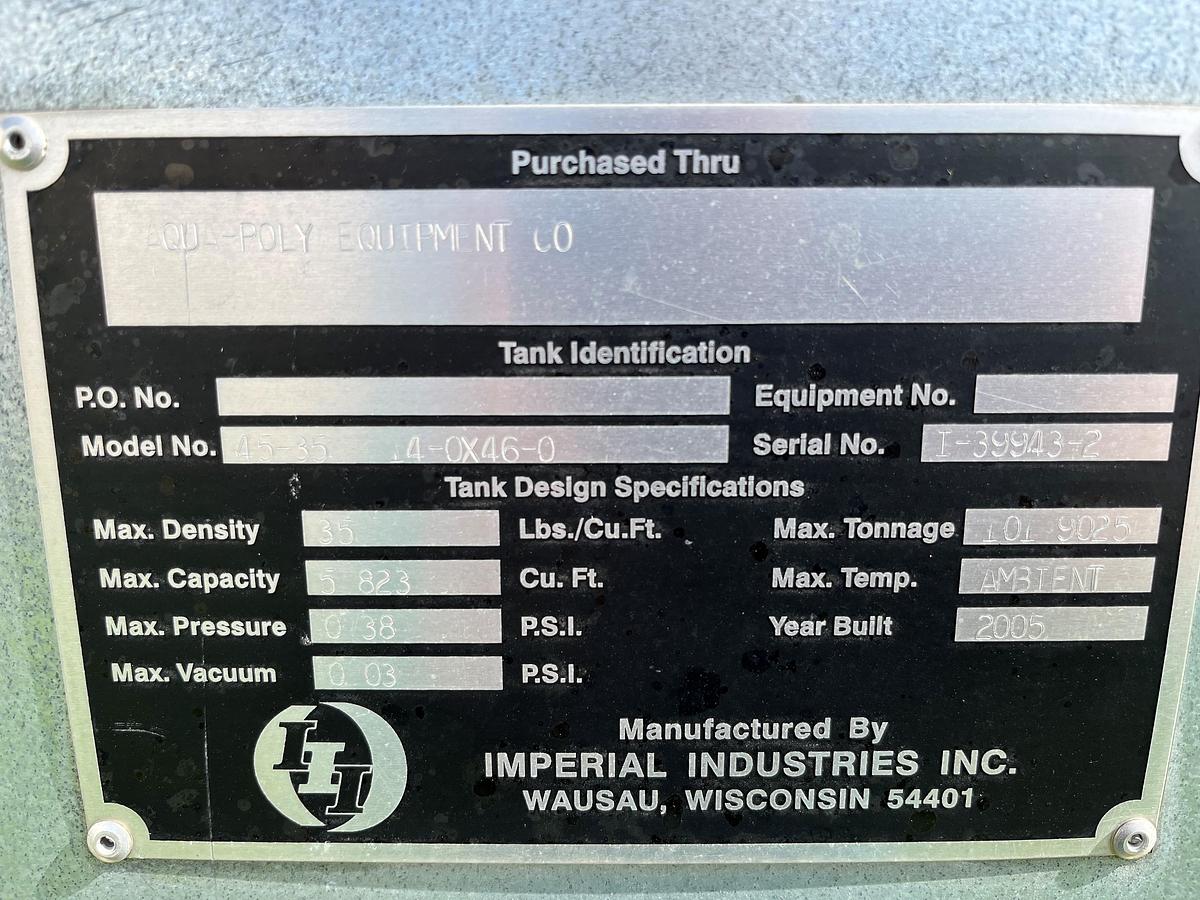

2005 Imperial Industries Silos - 5823 Cu Ft

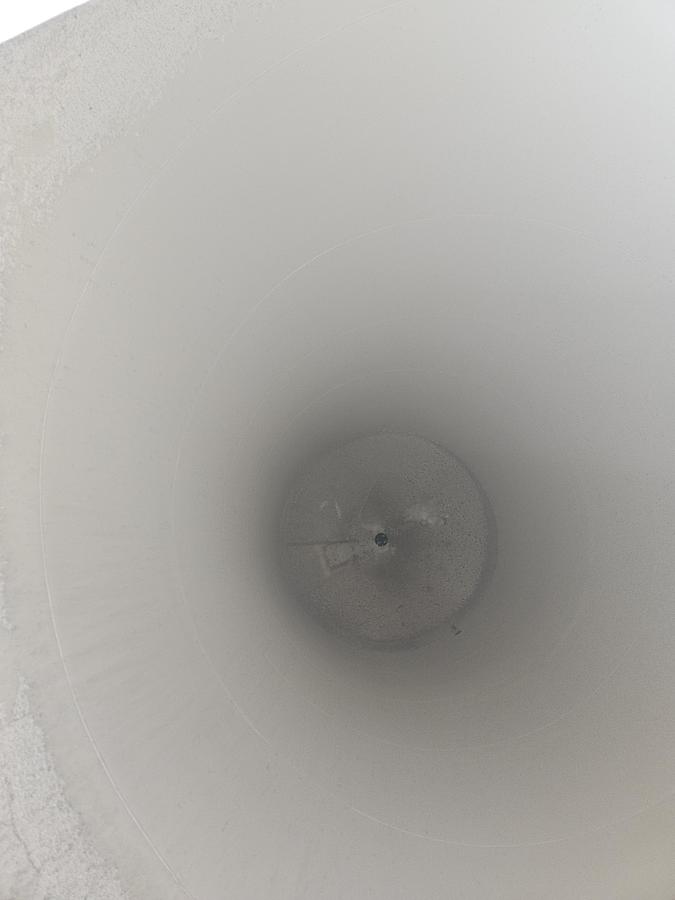

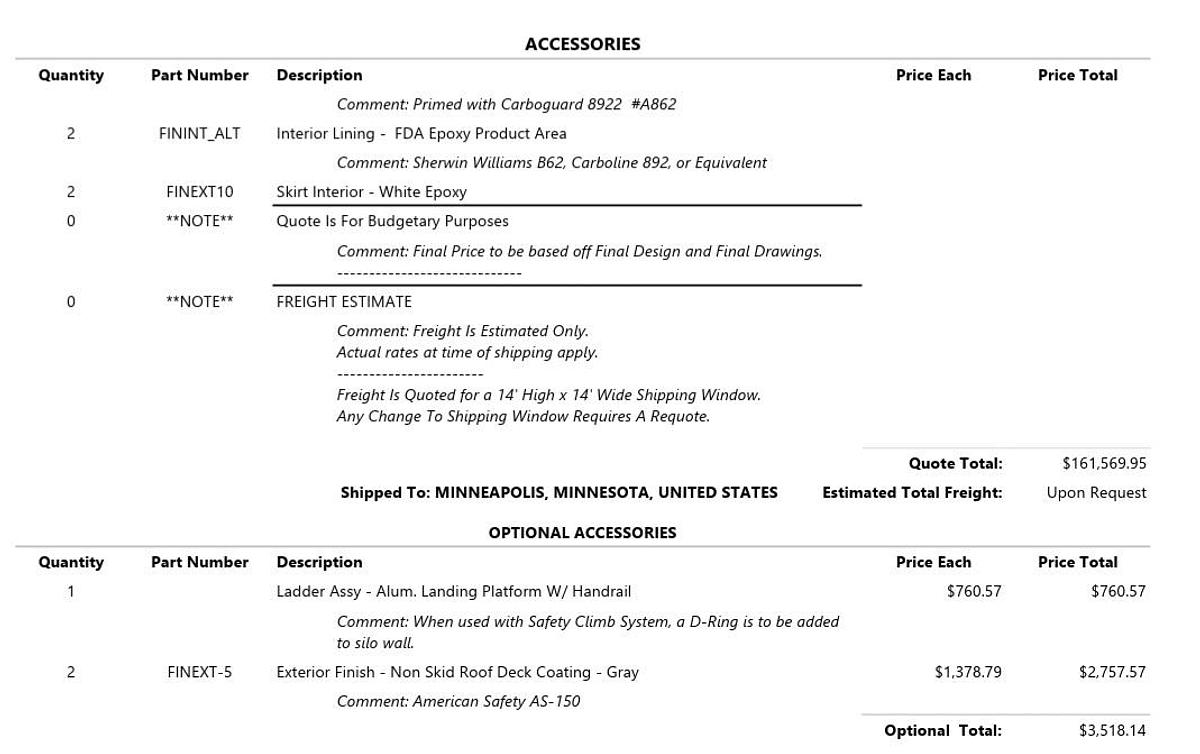

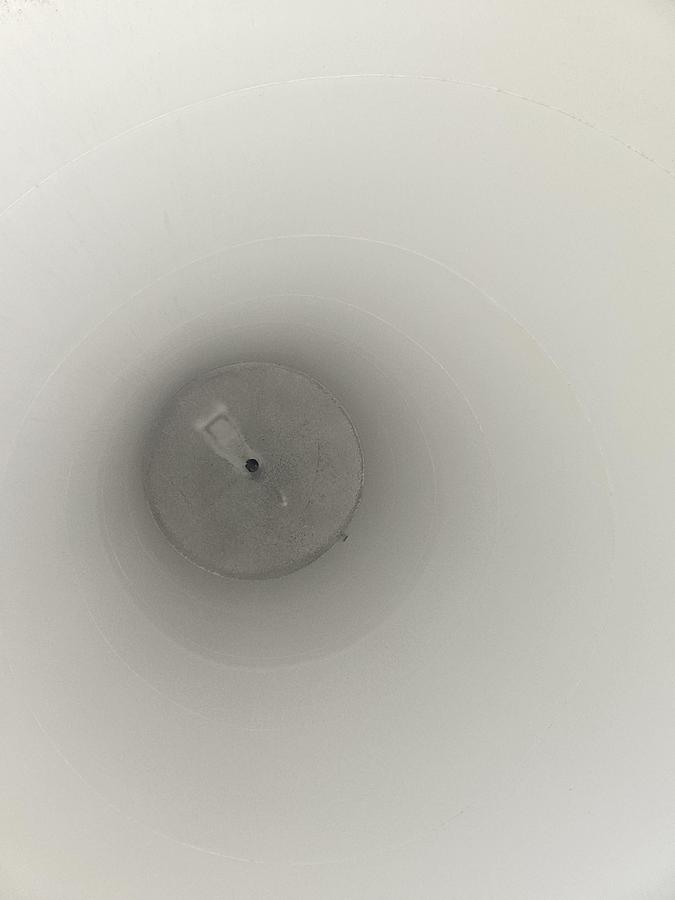

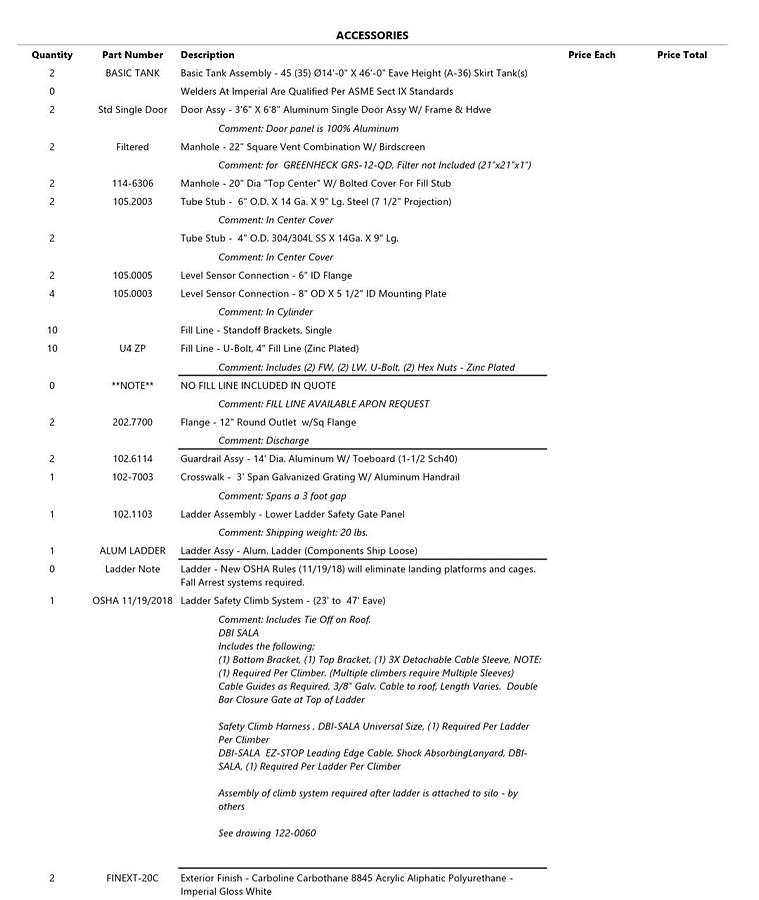

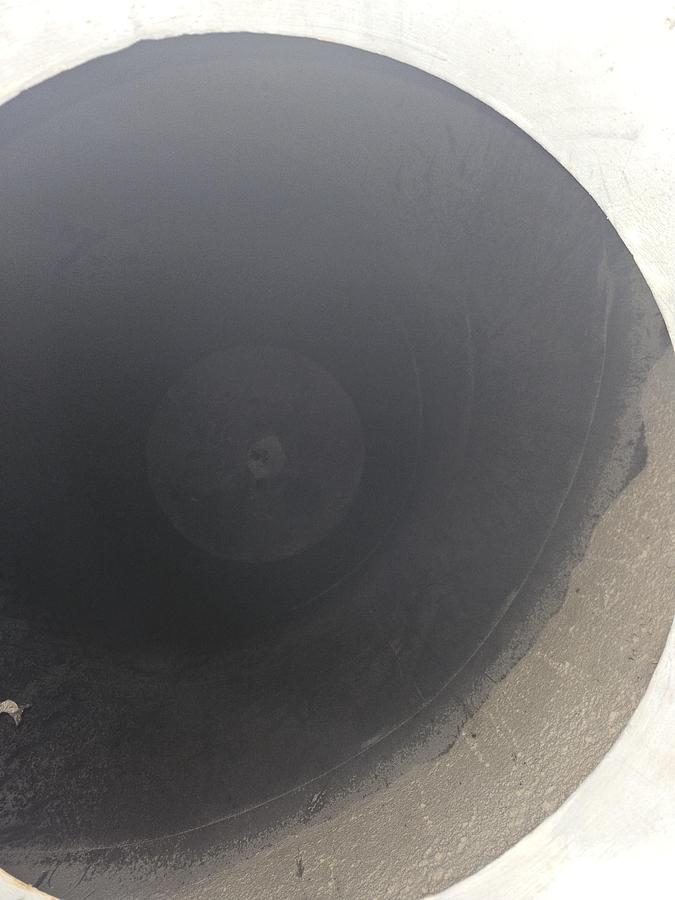

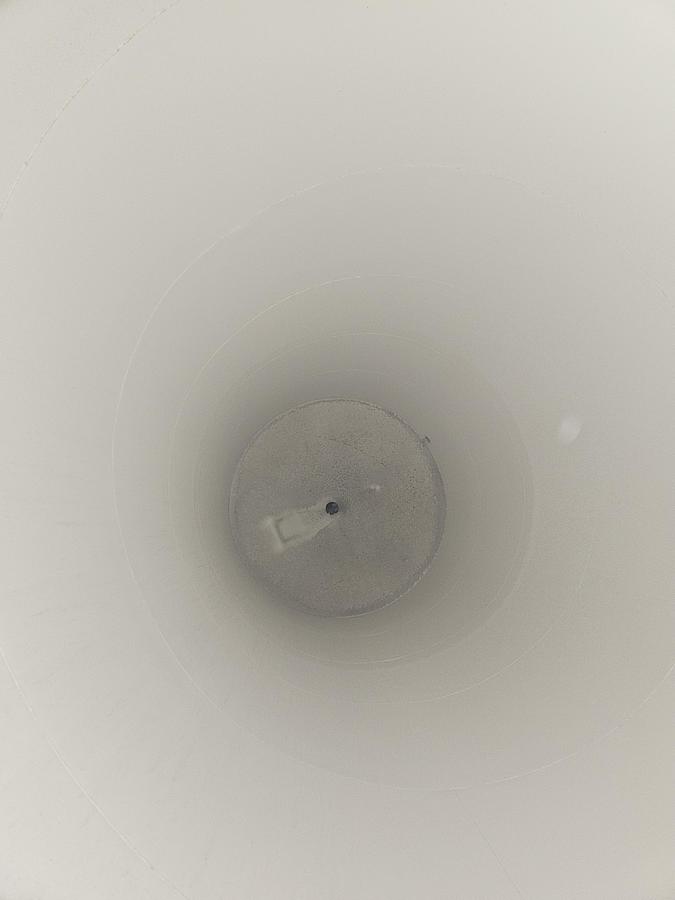

Silos  Details

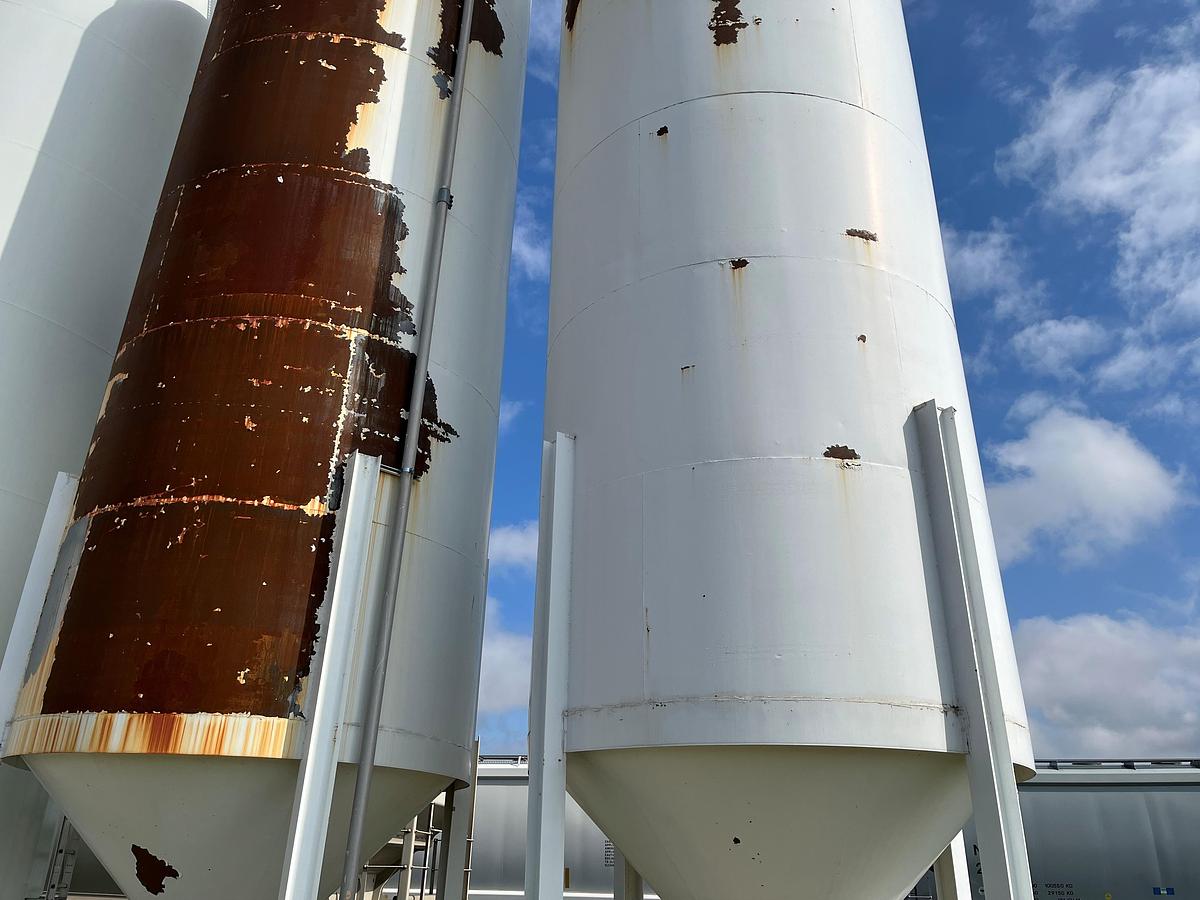

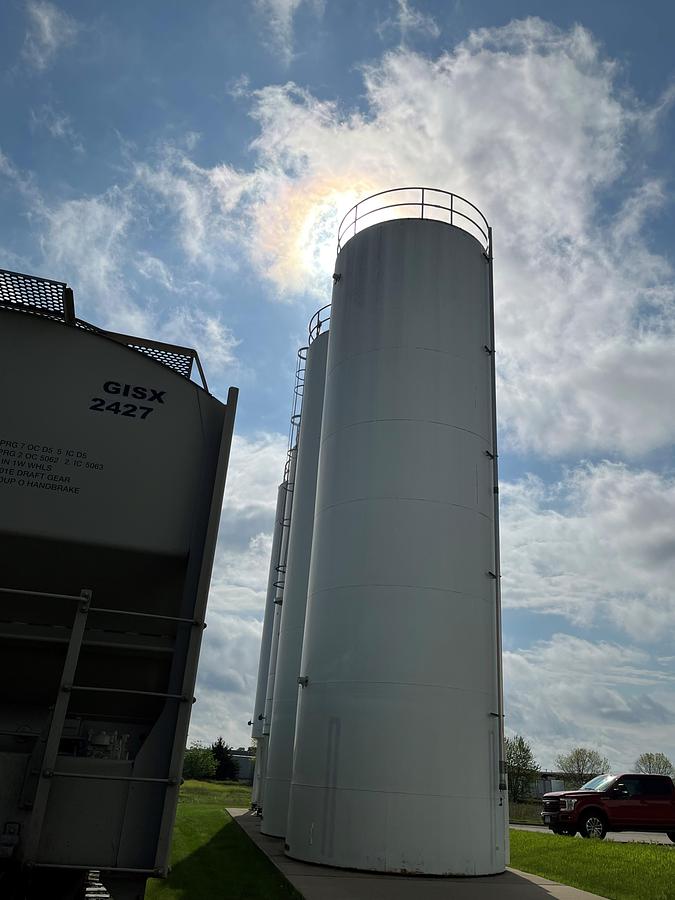

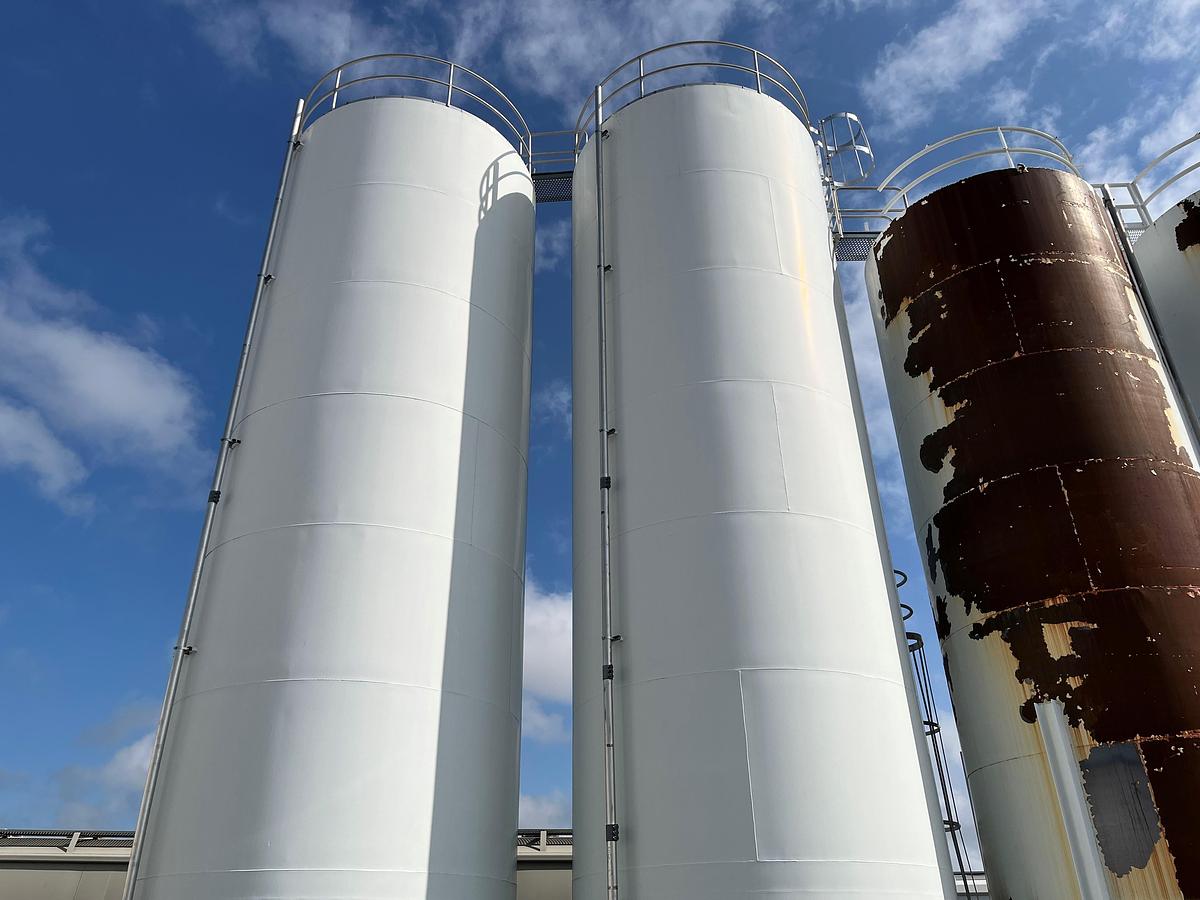

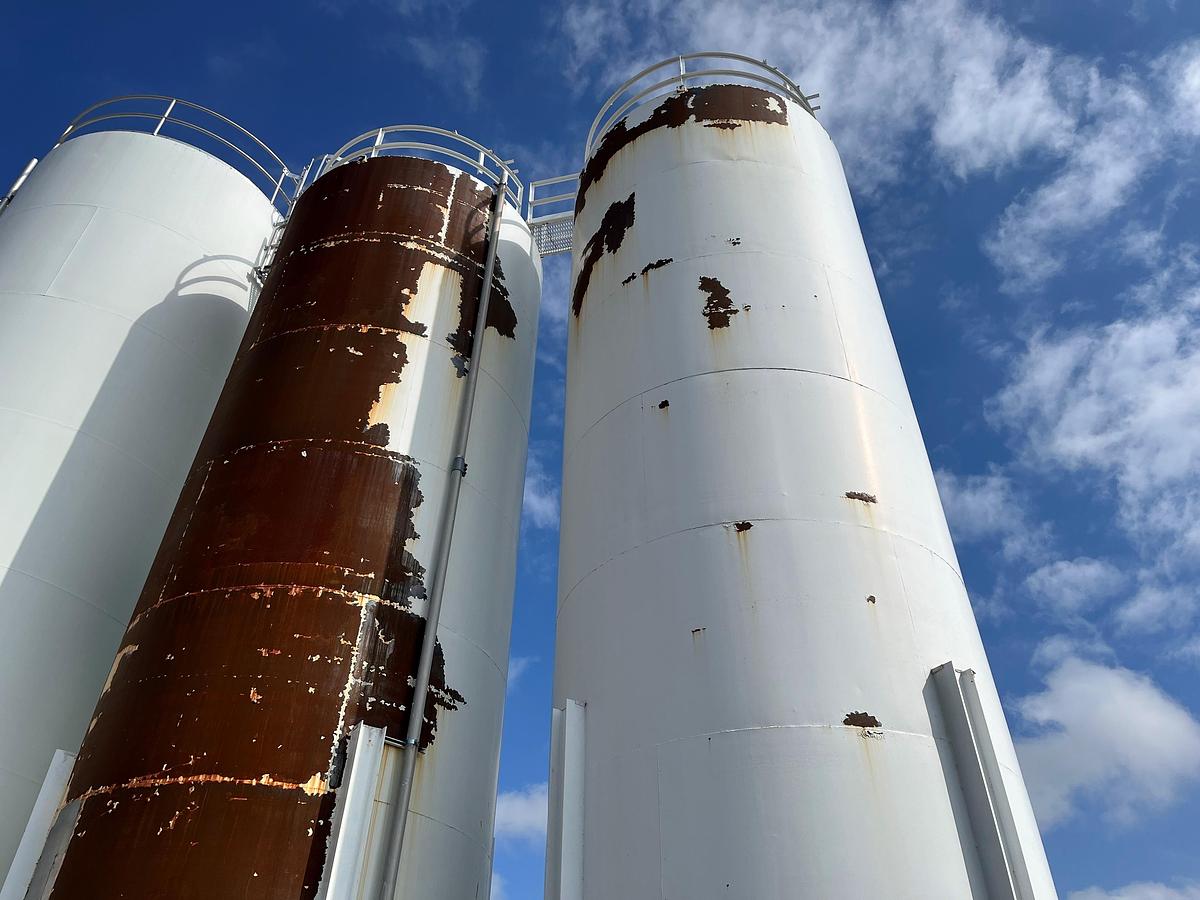

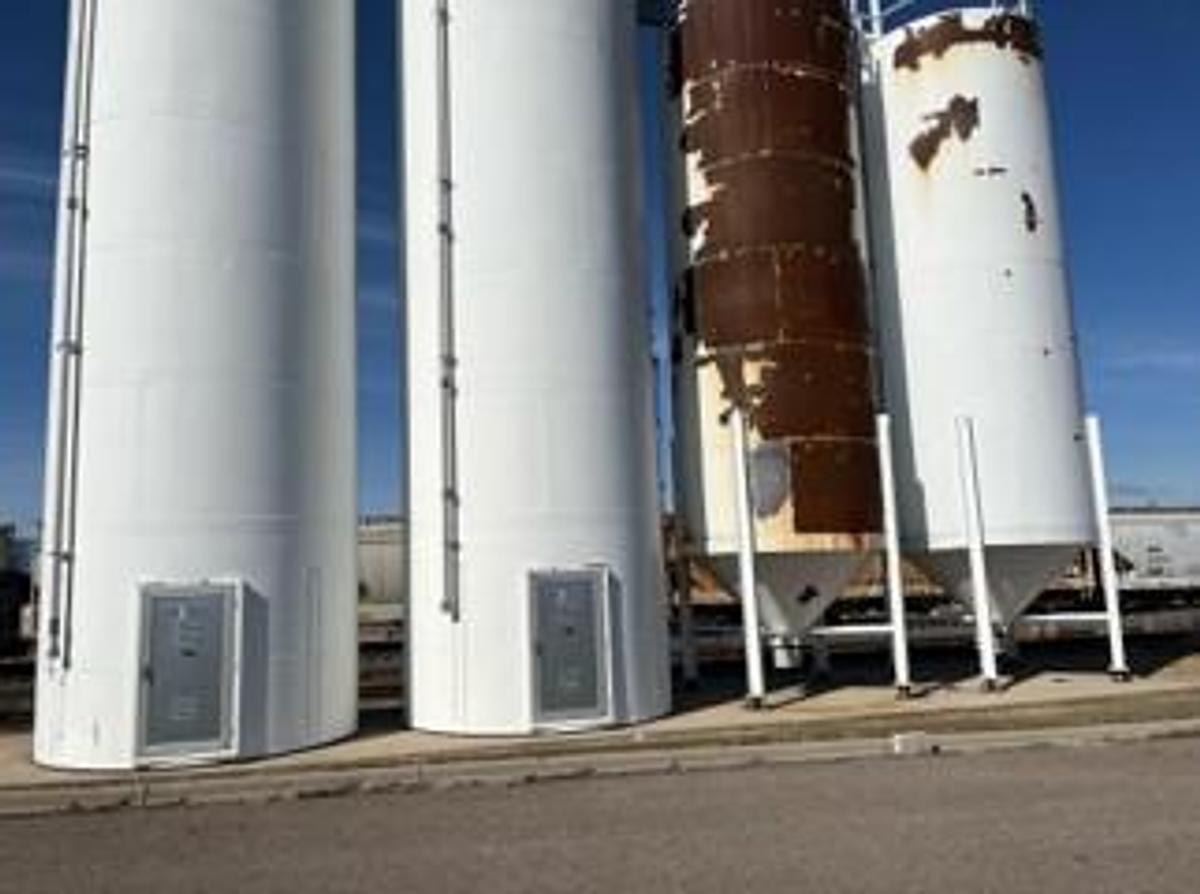

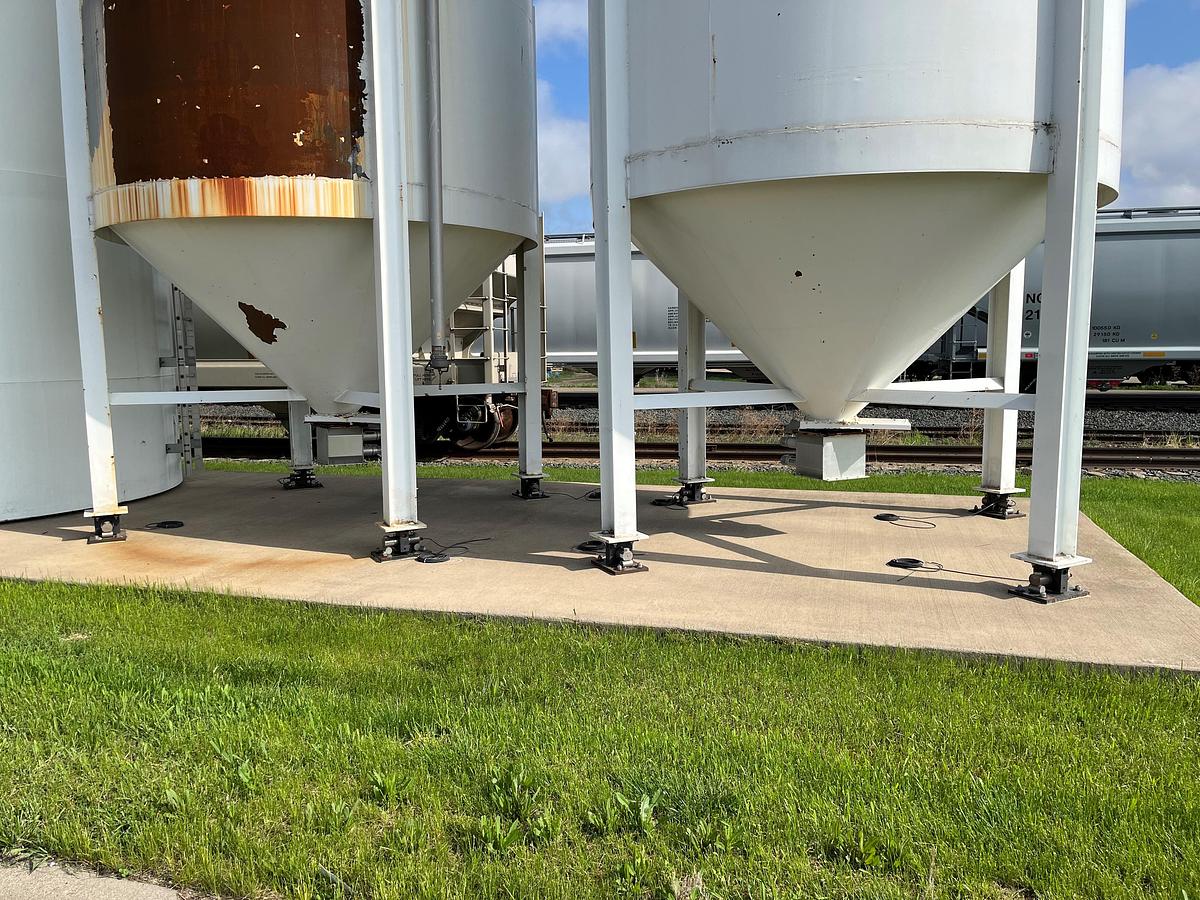

Four silos with mezzanine

Two 14-ft Tank Dimensions  (never used)

Tank Diameter: 14'-0"

Eave Height:46'-0"

Overall Height: 47'-2 13/16"

Cylinder Height: 36'-10 1/4"

Usable Capacity: 5,774 Cu. Ft.

Hopper Angle: 45°

Discharge Size(Conical): Ø1'-0" Discharge Clearance: 2'-6"

Interior Design Pressure: 0.50 PSI Exterior Design Pressure: 0.03 PSI Vacuum

Two 12-ft Tank Dimensions  (never used)

Tank Diameter: 12'-0"

Eave Height: 40'-0"

Overall Height: 47'-2 13/16"

Cylinder Height: 32’

Usable Capacity: 3,934 Cu. Ft.

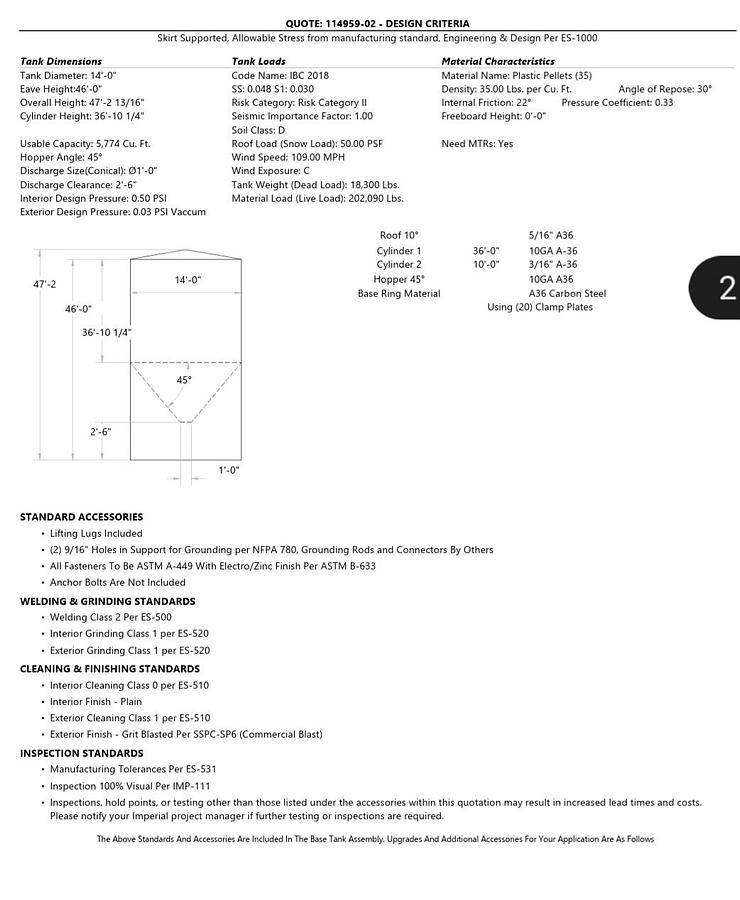

Tank Loads

Code Name: IBC 2018

Risk Category: Risk Category II Seismic Importance Factor: 1.00

Soil Class: D

Roof Load (Snow Load): 50.00 PSF Wind Speed: 109.00 MPH

Wind Exposure: C

Tank Weight (Dead Load): 18,300 Lbs. Material Load (Live Load): 202,090 Lbs. SS: 0.048 S1: 0.030

WELDING & GRINDING STANDARDS

Welding Class 2 Per ES-500

Interior Grinding Class 1 per ES-520

Exterior Grinding Class 1 per ES-520

CLEANING & FINISHING STANDARDS

Interior Cleaning Class 0 per ES-510

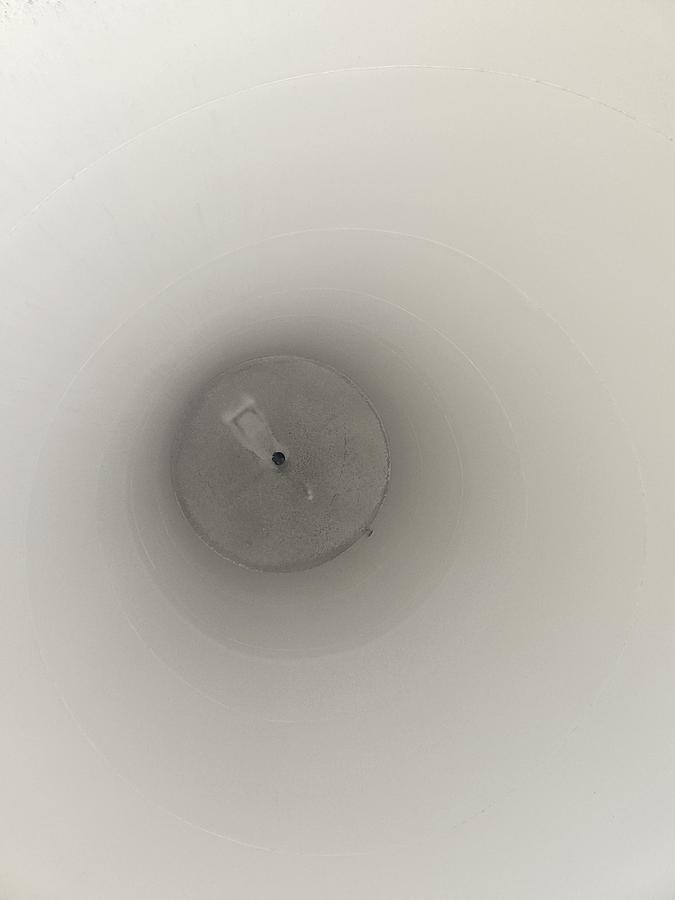

Interior Finish - Plain

Exterior Cleaning Class 1 per ES-510

Exterior Finish - Grit Blasted Per SSPC-SP6 (Commercial Blast)
